CNC TURNING MACHINE QC Series

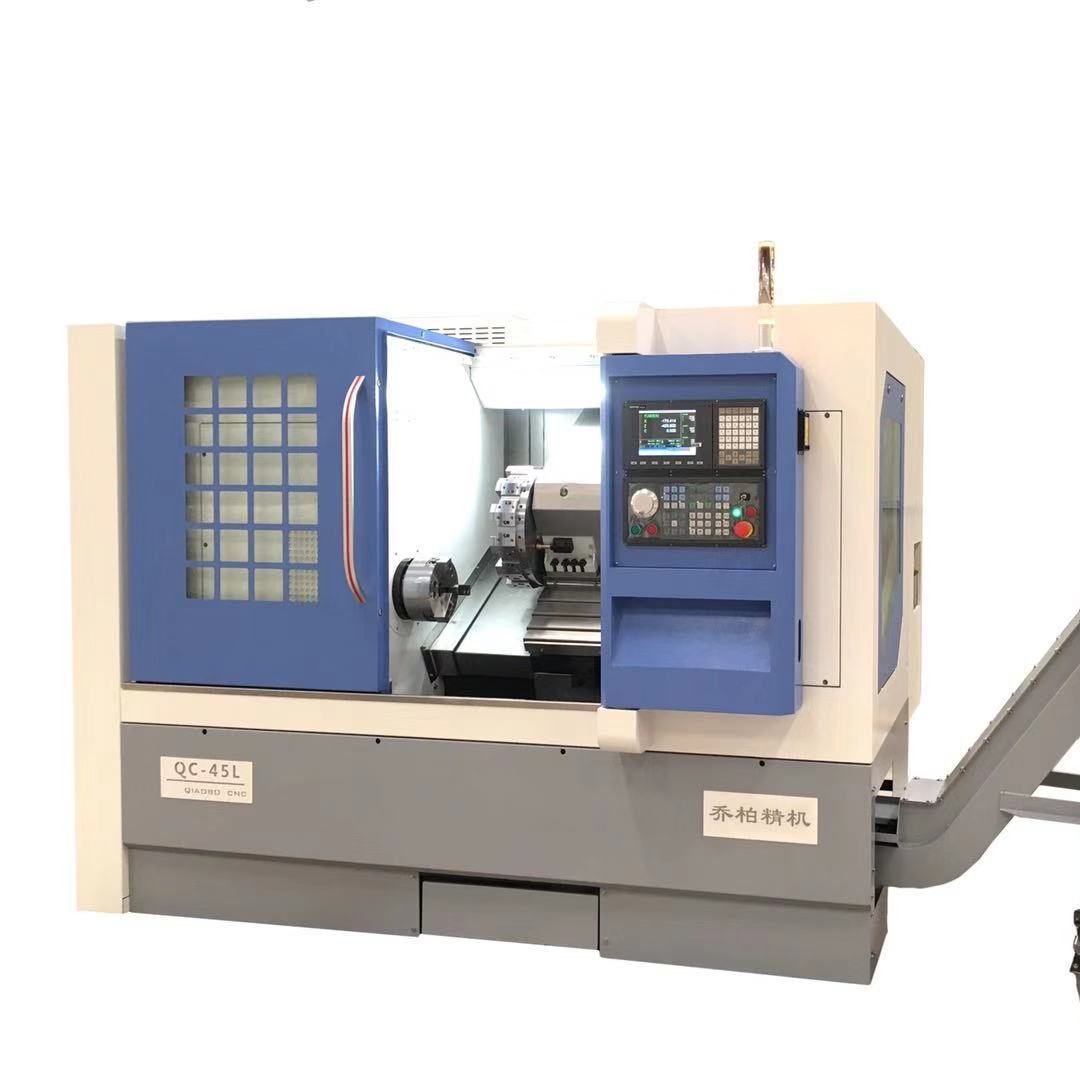

CNC TURNING MACHINE / CNC LATHE QC Series

• Optimized hydraulic scheme design: Independent hydraulic station design for maximummaintenance and convenient operation, effectively improving the heat dissipation effect of the hydraulic system.
• Effective stainless steel protection and high rigidity structural design: The enclosed waterproof design effectively protects the normal operation ofthe screw rod and guide rail components. All sliding plates, spindle tables, turrets, and guide rail base contact surfaces are equipped with long shovels scraped to achieve optimal assembly accuracy, structural rigidity, and balanced load.
• Adopting high-precision NSK bearings from Japan.

Quality assurance system

• Spindle: High speed and high precision Taiwan spindle with large diameter, P4 grade precision bearinghigh stability, low noise, high precision.
• Dynamic balance inspection of spindle motor: High speed running balance inspection of the mainshaft, Ensure that the spindle is free from deflection.
• Laser inspection: All machines are produced under the lSO 9001 quality assurancesystem. All machines under final inspection of finished products on the production line, Including actual cutting, laser measurementetc. lmplement programming for over 100 hours of actual machinetesting and operation before all machines are shipped.
• High quality Taiwan linear guide rail and screwrod.
• Inspection of standard turning parts: All machines shall be inspected by standard turning parts after completion, To ensure the accuracy of turning.
• Rail parallelism inspection: Precision linear slide rail, after installation, it is necessary to verify the parallelism and operation of the two rails true straightness to ensure theaccuracy of the track after installation.

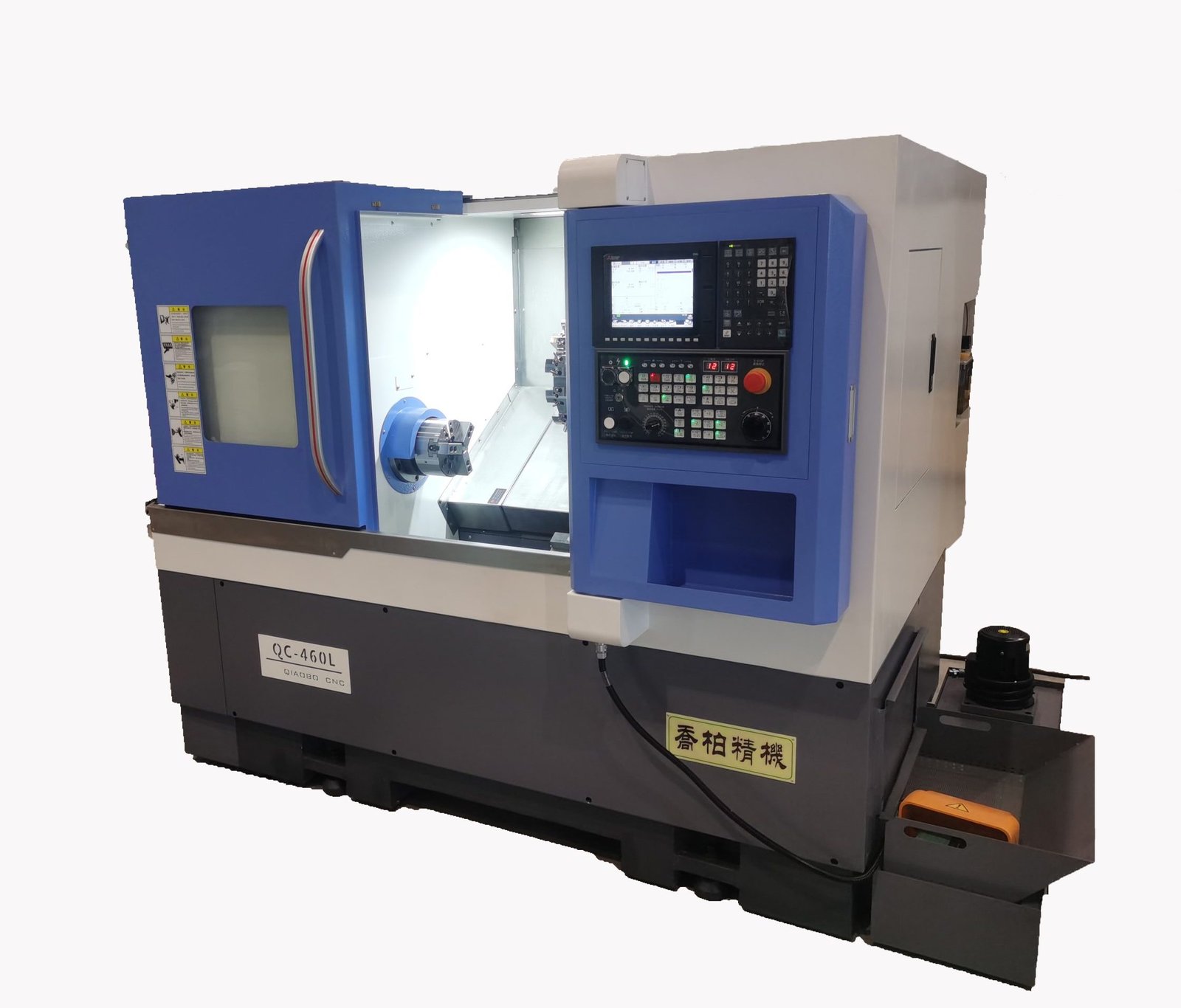

Parameter Table of QC-460L:

(For other model’s parameters of the same series, please refer to the product catalog)
